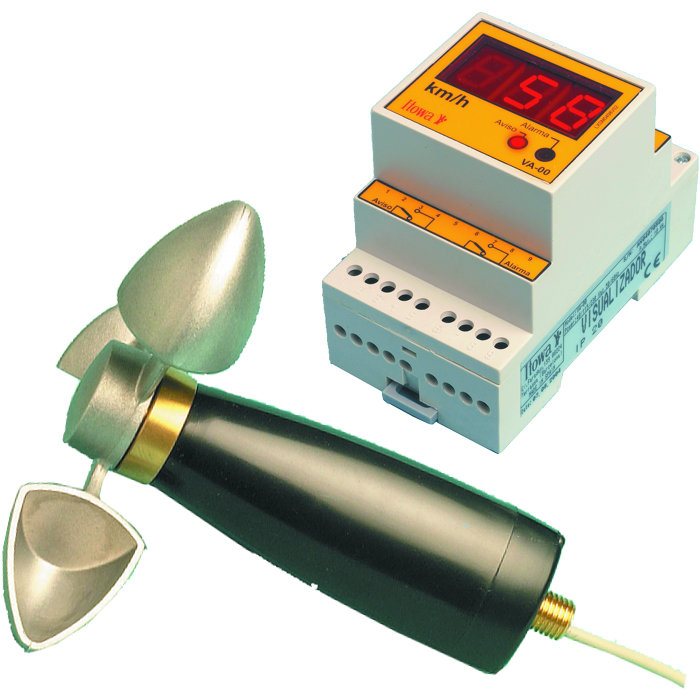

The ANM1000 is a special variant of the Golf-Easy anemometer. It consists of a separate measuring unit in plastic or metal and a separate display unit with electronics.
The display unit has a three-digit LED display and two alarm relay relays WARNING (50 km/h) and ALARM (70 km/h). The alarm values are adjustable, the unit is mounted on a DIN rail.
The set is supplied with a 20-meter connection cable and a metal holder of the measuring unit.
As an option, the ANM1000 can be supplied with a metal measuring unit or a magnetic holder.
Features
- meets the requirements of the ITC “MIE-AEM-2” of the Regulations of Lifting and Maintenance Apparatus
- quick installation with several options
- optional heating of the measurement unit
Specifications
- Sensor: optical
- Measurement range: 0-30 m/s (0-108 km/hr)
- Indication delay (hysteresis): 5 s WARNING, 2 s ALARM
- Resolution: 0,06 m/s
- Power supply: 48, 115, 230, 400 V AC
- Operating temperature: -20°C/+60°C
- Optional features: fastening by magnets, metal sensor, metal and heated sensor
