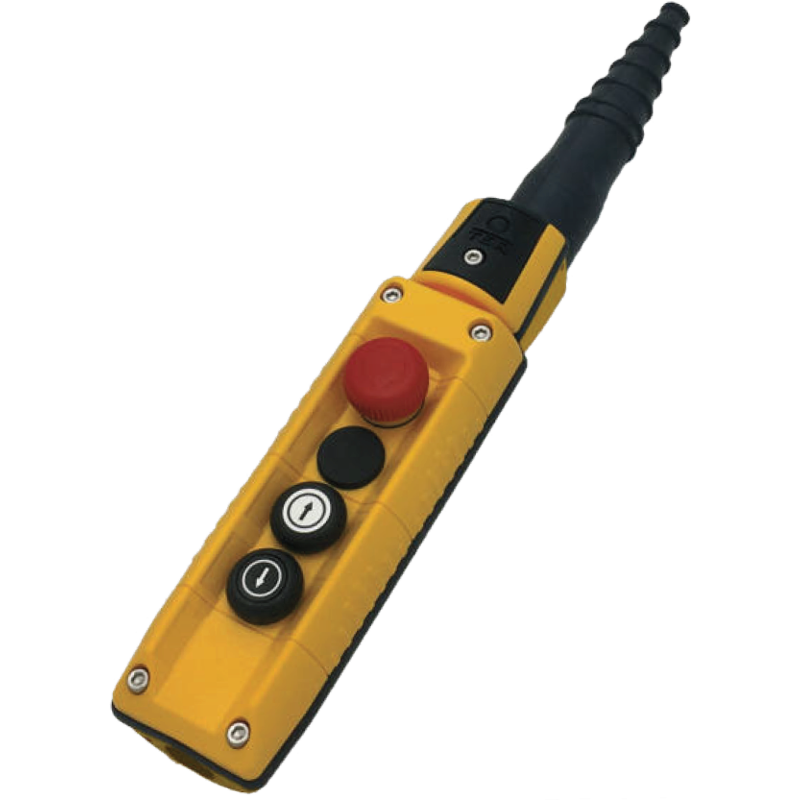

Mike-D

Pendant control station for direct control of industrial machines. Ergonomic shape, easy to handle, user-friendly and sturdy, Mike-D is the result of careful analysis of ergonomic aspects and it is rich in high-performing features to meet the most demanding requirements.

Features

  • Reduced installation and wiring time and costs: the cable inlet and the switches fitted in the base of the control station are separated from the actuators, mounted on the cover.
  • Innovative suspension system with concealed cables to enable rapid, correct, ergonomic installation.
  • Rubber pushbuttons with symbol disks to ensure protection against dust and prevent jamming when the control station is used in harsh environments.
  • The emergency stop mushroom pushbutton complies with standard ISO 13850.
  • IP protection degree: Mike-D is classified IP66, IP67 and IP69K.
  • IK protection degree: Mike-D is classified IK09.
  • Extreme temperature resistance: -25°C to +70°C.
  • All materials and components used are wear resistant and guarantee protection of the unit against water and dust.

Options

  • Available in configurations with 3 (1 speed version) or 4 actuators (2 speed version).
  • Direct control 1 speed two-pole switches and 1 speed three-pole switches for emergency mushroom pushbutton.
  • Mechanical interlock to prevent simultaneous operation of opposite functions.
  • 1 speed pushbuttons available in different colours and mushroom pushbuttons with rotation release.
  • Available with labels (symbols and lettering) to be applied next to the actuators or with pushbuttons with two-colour moulded permanent symbols.

Parameter

  • Storage ambient temperature: -40°C/+70°C
  • Operational ambient temperature: -25°C/+70°C
  • IP Protection degree: IP 66 / IP 67 / IP 69K
  • IK Protection degree: IK09
  • Insulation category: Class II
  • Cable entry: rubber cable sleeve (Ø 8÷26 mm), Cable clamp M20
  • Operating positions: any position
  • Mechanical life pushbutton: 10×10⁶ operations
