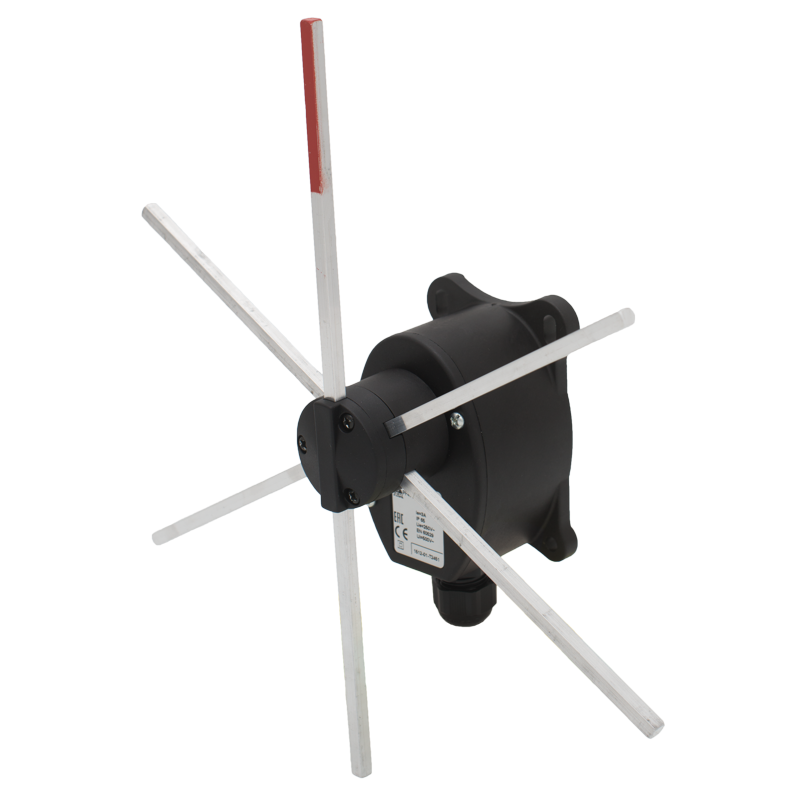

Tango

Cross position limit switches designed for controlling the movement of overhead travelling cranes, hoists and complex machine tools.
Tango has rods with maintained positions every 60°.

Features

  • Modern design and overall dimensions studied to facilitate installation and maintenance operations.
  • 4 fixing holes.
  • Rods with 4 maintained positions every 60°.
  • Mechanical life of switches: 1 million operations.
  • Operation frequency: 3600 operations / hour max.
  • IP protection degree: Tango is classified IP65.
  • Extreme temperature resistance: -25°C to +70°C.
  • Enclosure and head in thermoplastic material (nylon reinforced with fiberglass) and internal components in technopolymers to guarantee long life-cycle and constant performance.
  • All materials and components used are wear resistant and guarantee protection of the unit against water and dust.

Options

  • Slow action switches with 1NC or 1NO contacts.
  • Available with 2, 3 or 4 switches and different rod lengths.

Parameter

  • Storage ambient temperature: -40°C/+70°C
  • Operational ambient temperature: -25°C/+70°C
  • Protection degree: IP 65
  • Insulation category: Class II
  • Cable entry: cable clamp M20
  • Operation frequency: 3600 operations/hour max
