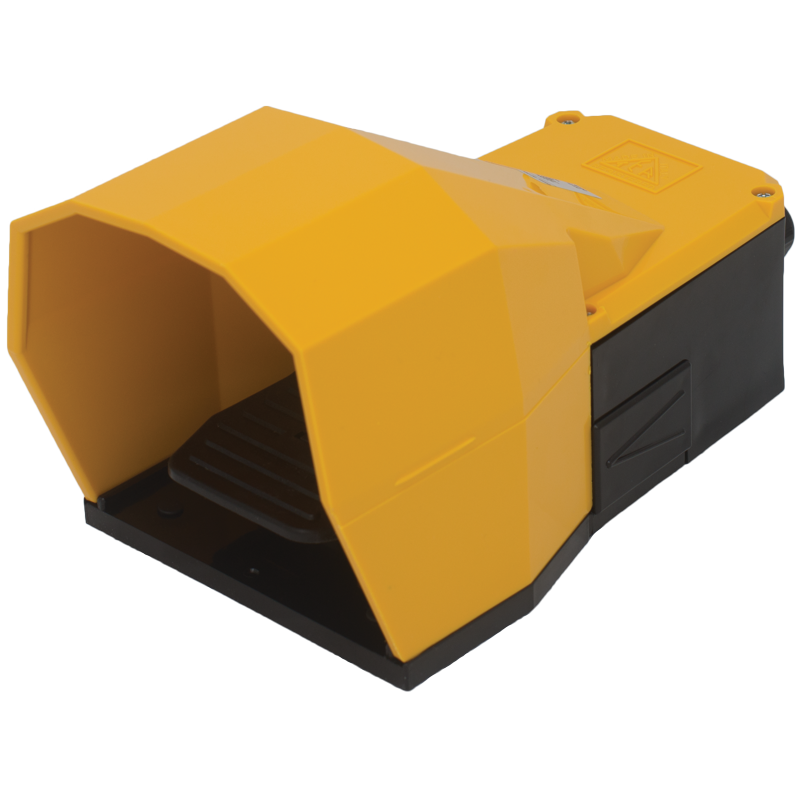

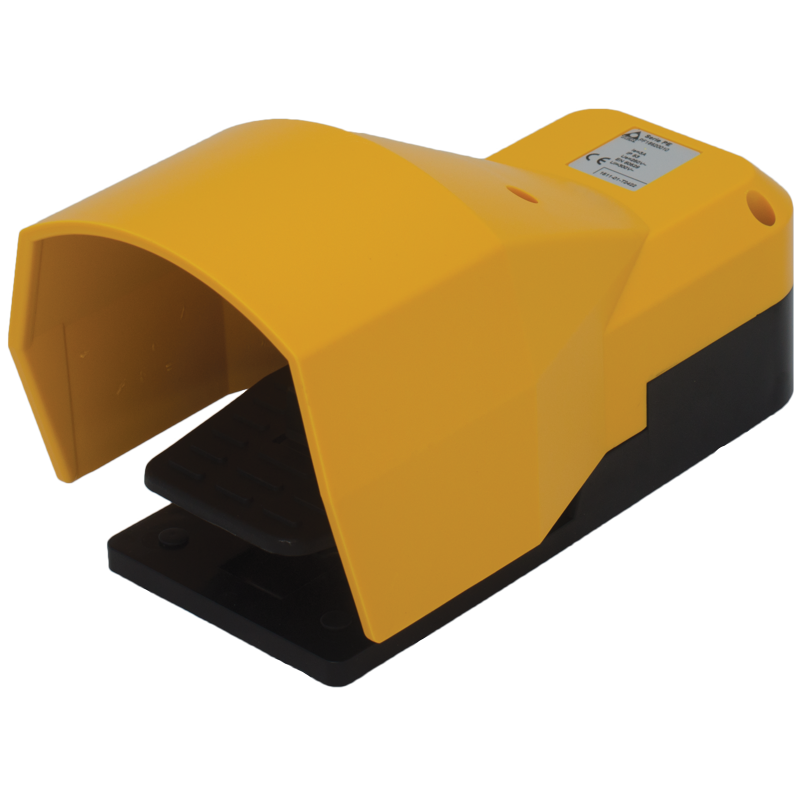

6100/6200

Footswitch for auxiliary control of industrial machines.
It acts on the machine motor through a power interface, such as a contactor.

Features

  • The emergency stop mushroom pushbutton complies with standard EN 418.
  • Positive opening NC contacts for safety functions.
  • Mechanical life of switches: 1 million operations.
  • IP protection degree: footswitch 6100/6200 is classified IP53.
  • Extreme temperature resistance: -25°C to +70°C.
  • Made of plastic material or die-cast aluminium.
  • Materials and components are shock and wear resistant.

Options

  • Available with standard protection cover or large cover for safety shoes (6100 version).
  • Single or double footswitches fixed on a metal plate, with emergency mushroom pushbutton.
  • Special footswitch design for pneumatic valve with fixing plate (6100 version).
  • It may be fitted with “lock-release” device used for keeping the pedal pressed or with safety device to prevent accidental operation.
  • Snap or slow action switches with 1NO+1NC contacts, or slow action switches with 2NO+2NC contacts.

Parameter

  • Storage ambient temperature: -40°C/+70°C
  • Operational ambient temperature: -25°C/+70°C
  • Protection degree: IP 53
  • Insulation category: Class I
  • Cable entry: cable clamp M20
